SomniPro PSG
PSG / SYSTEM
Wireless mode with synchronised video and complete EEG monitoring.
Key Highlights
- Wireless mode with synchronised video
- PSG system with the capability to provide complete EEG monitoring
- Long-lasting battery operation, wirelessly for over 20 hours
- All necessary channels in a single headbox
System Overview
The SomniPro PSG is a versatile system designed for comprehensive sleep studies and full EEG monitoring. Its headbox supports all PSG sensors, including airflow, body movement, EXG, and more, along with a full range of EEG channels. The system can connect via fiber optics or operate wirelessly while maintaining full synchronisation with networked cameras. EEG and sleep study reports are fully customisable to meet the specific requirements of your clinic or hospital.
SomniPro PSG HeadboxDEYMED Technological Advantages
Battery Operated
DEYMED systems deliver the highest possible signal quality by operating entirely on battery power, significantly reducing artefacts and external noise. For added flexibility, the systems can also be powered directly from the mains, allowing for seamless operation on both battery and Direct Power.
Wireless Use
In wireless mode, the amplifier can record for up to 30 hours on a single charge. Wireless range up to 100 metres from the base system for maximum patient comfort and freedom to move.
Intelligent Charging
DEYMED's new ultra-low capacitance induction charging keeps the batteries charged while the headbox is connected to the system. This feature ensures optimal signal quality during sensitive neurophysiology tests, allowing for full battery operation when needed.
Optical Isolation
Optical isolation greatly improves signal quality and patient safety. This feature, combined with long-lasting battery operation, offers the best-in-class technology for neurophysiological recordings.
High Sample Rates
DEYMED systems, equipped with Digital Signal Processor (DSP) technology, can sample at very high rates and adjust parameters digitally in real-time. DSP technology provides numerous advantages over traditional analog processing methods.
Always On Impedance
Always on impedance monitoring displays impedances during recording and has alerts to ensure electrodes are in range at all times. The values are saved to the EEG file for post-quality-assurance review.
System Features
- Fully battery operated headbox ampliflier with Intelligent Charging for superior signal quality
- Synchronised video with PSG signals
- PTZ video cameras via the network
- Wireless Bluetooth connectivity
- Long-lasting batteries that can be replaced without interrupting use
- Complete PSG scoring with automatic scoring of apneas, hypopneas, desaturation and leg movements.
- Continuous impedance monitoring is included in the recording file
- Fully customisable EEG and PSG reports
- GDT, HL7 and network capabilities options
- User account and access privileges
Software

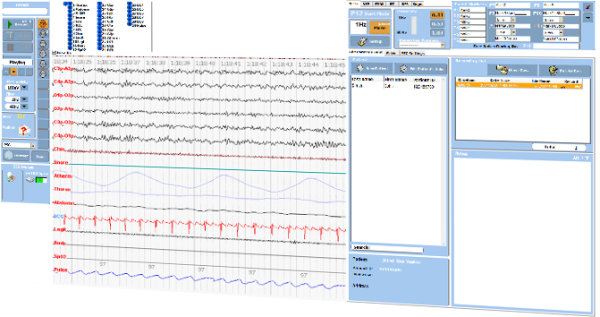

SomniPro PSG Acquisition
- Configure and acquire any PSG or PSG/EEG setup
- View all channels, along with body position and SpO₂ values
- Built-in montage editor
- Quick presets for easy use
- Video view with PTZ camera control

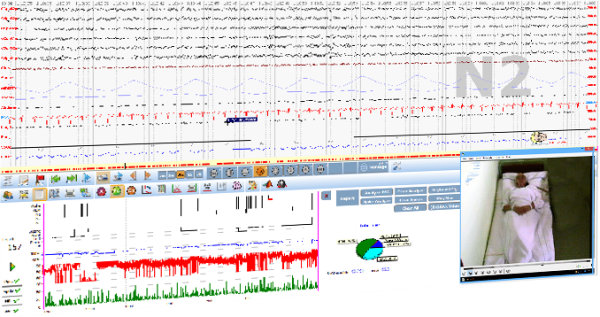

SomniPro PSG Explorer
- Full PSG/EEG review features
- Sleep Stage Scoring according to AASM Rules
- Various report templates (customisable)
- Works with Quick-Score PSG keyboard
- Montage editor
- Data export to EDF+ and other formats

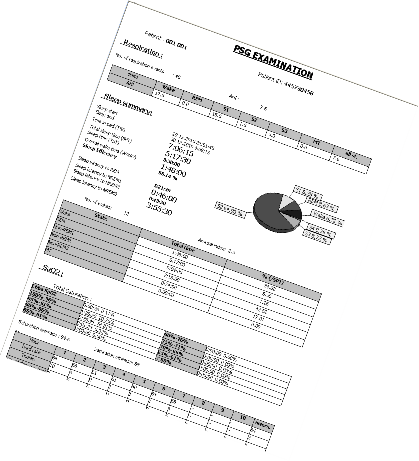

Customisable Report Generator
Create full clinical PSG reports with customisation of any recorded parameters, including calculations for AHI and RDI.

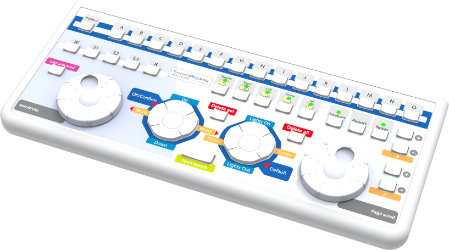

Quick-Score Keyboard
The Quick-Score Keyboard significantly enhances the speed and comfort of browsing and scoring sleep recordings. It includes sleep-stage scoring, along with full annotation and reporting controls. Sensitivity adjustments and changes to most on-screen properties can be made with the click of a button.
Product Details

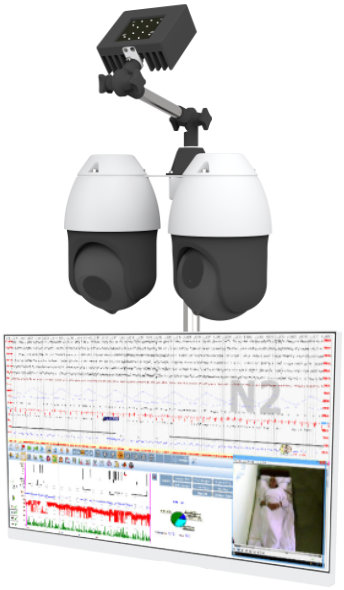

Video Monitoring
Video can be streamed over the network to any review station or accessed via a UDP viewer, supporting up to four video channels on a single screen. Clear night time view with infra-red lamp and adjust light sensitivity for day/night detection.
- PTZ Cameras for Close-Up and Full-View Coverage or Basic Camera Setup
- Side-by-side dual view capture
- Video trimming to save storage
- Clear night time view with infra-red lamp
- Adjust light sensitivity for day/night detection
- High quality MPEG-4 (h.264) video
- Remote network video / PSG viewer
- Multi-room monitoring (4 beds per viewer)
- Mounts to wall or FlexiCart for portability
- Wide-band microphone with high sensitivity
Inductive Interface & Sensors
Specialized sleep study sensors are easily integrated into the headbox setup.
- Inductive interface cables for SleepSense belts
- Piezo snore sensor for snoring frequency detection
- DC body position sensors direct output
Configurations
FlexiCart
The FlexiCart comes with an integrated computer and offers the ability to mount FlexiArm, a photic stimulation lamp, headbox extender, and video monitoring system. Alternatively, it can be configured with the FlexiTrolley, which can hold headboxes, photic stimulation lamp, or video monitoring system.
Headbox options: LT Plus, RS, RS Plus
FlexiTrolley
The FlexiTrolley solution is ideal for situations where the patient is in a separate room and the computer station is next door, minimising interruptions. The headboxes and video system can be mounted on the trolley, providing a convenient and efficient setup.
Headbox options: LT Plus, RS, RS Plus
.jpg)
Portable
This solution is ideal for EEG systems that require easy transport between locations. It features a USB adapter and a headbox connector and can be configured with the FlexiTrolley for added convenience and mobility.
Headbox options: LT Plus, RS, RS Plus
NeuroTablet
NeuroTablet is the best solution for systems that need to be quickly transported.
Accessories
We supply a range of accessories for our systems. Download the DEYMED Accessories catalogue in PDF format from the link on the right. Contact us if you are interested in any listed accessories.
Headbox Options

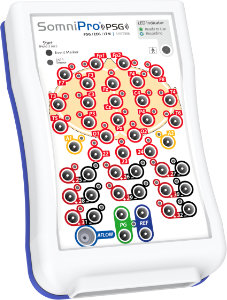

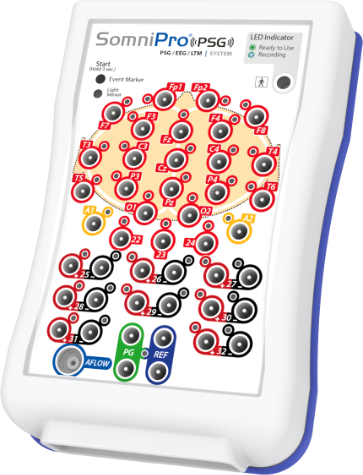

SomniPro PSG LT Plus
Channel options: 32The SomniPro PSG LT headbox represents DEYMED’s premier solution for most polysomnography studies. It offers a comprehensive range of EEG and EXG channels, ensuring coverage of all body movements. The headbox is also equipped with an integrated airflow sensor. For added flexibility, the system supports optional wireless operation with a range of up to 100 meters. Should a patient move beyond the wireless range, the headbox seamlessly continues recording to its internal memory, automatically syncing the stored data as soon as the patient re-enters wireless coverage.

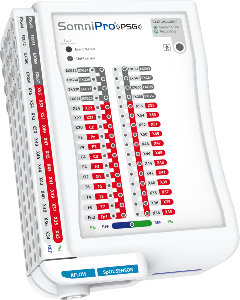

SomniPro PSG LT PlusSomniPro PSG RS Plus
Channel options: 64The SomniPro PSG RS Plus headbox is a high-end headbox specially designed for most polysomnography studies. It features a full spectrum of EEG channels and EXG channels, covering all body movements. Additionally, it includes an airflow sensor and SpO₂ monitoring. The system can optionally operate wirelessly, with a range of up to 100 metres, extendable to 300 metres. If a patient moves out of wireless range, the headbox continues recording to its internal memory and automatically syncs the backup data once the patient returns within wireless coverage.
SomniPro PSG RS PlusSomniPro PSG LT

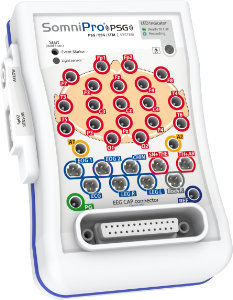

Channel options: 32The SomniPro PSG LT headbox is DEYMED’s gold-standard device for most polysomnography studies. It features a comprehensive range of EEG and EXG channels, enabling effective monitoring of all body movements. A Canon connector simplifies the setup by allowing the entire EEG cap to connect with a single plug. Additionally, the headbox integrates an airflow sensor and SpO₂ monitoring for enhanced functionality. The system supports optional wireless operation with a standard range of up to 100 meters, extendable to 300 meters. If the patient moves out of the wireless range, the headbox seamlessly continues recording data to its internal memory. Once the patient returns within the coverage area, the system automatically syncs the stored data.
SomniPro PSG LTSomniPro PSG RS

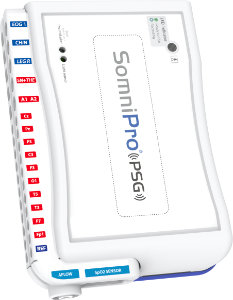

Channel options: 32The SomniPro PSG RS headbox is DEYMED’s gold standard for most polysomnography studies. It features a full spectrum of EEG channels and EXG channels, covering all body movements. Its design prioritises patient comfort. Additionally, it includes an airflow sensor and SpO₂ monitoring. The system can optionally operate wirelessly, with a range of up to 100 metres, extendable to 300 metres. If a patient moves out of wireless range, the headbox continues recording to its internal memory and automatically syncs the backup data once the patient returns within wireless coverage.
SomniPro PSG RSHardware Add-ons
Quick-Score Keyboard
Multifunctional, User-programmable PSG keyboard.
Piezo Snore Sensor
A durable and low-profile microphone offers a wide frequency range and sensitivity to other respiratory sounds besides snoring.
DC Body Position Sensors
The Body Position Sensor provides a signal that is directly proportional to the patient's sleeping posture.
Inductive Interface Cable
Inductive Interface Cables allow you to connect any SleepSense Inductive Belt.
FlexiTrolley
A stand-alone trolley with options for a headbox arm, VEP monitor, or video monitor setup.
Accessory Basket for Cart
A basket that can be attached to the headbox arm.
Basic Camera
A basic camera that can be mounted on any cart, FlexiTrolley, or on a wall.
PTZ Cameras with Infrared Lamp
Single (dual - optional) camera can be mounted on any cart, FlexiTrolley, or on a wall.
Printer
Black and white or colour printer.
Photic Stimulator
Programmable with sets and frequencies up to 60 Hz; white/red light.
VEP Monitor
Low-latency response VEP monitor.
Holder for Electrodes
An electrode holder that can be attached to the arm.
Headbox Specification
| Product Specification | SomniPro PSG LT 32 ch | SomniPro PSG RS 32 ch | SomniPro PSG LT Plus 32 ch | SomniPro PSG RS Plus 64 ch |
|---|---|---|---|---|
| Number of EXG Channels per Headbox | 32 | 32 | 32 | 64 |
| SpO2 | Yes | Yes | Yes | Yes |
| Patient Marker | Yes | Yes | Yes | Yes |
| Light Sensor | Yes | Yes | Yes | Yes |
| 3-axis Accelerometer | Yes | Yes | Yes | Yes |
| Amplifier | AC | AC | DC | DC |
| Sample Rate | Up to 6 000 Hz | Up to 6 000 Hz | Up to 16 000 Hz | Up to 16 000 Hz |
| LED Impedance Indication on Headbox | No | No | Yes | Yes |
| Holter Mode | Included | Included | Included | Included |
| Wireless | Included | Included | Included | Included |
| Power Supply | Battery / Direct Power Mode | Battery / Direct Power Mode | Battery / Direct Power Mode | Battery / Direct Power Mode |
| Recording Time with Battery Operation on Optical Cable * | - | 60 Hours or Unlimited | - | - |
| Recording Time in Wireless Operation * | - | 24 Hours or Unlimited | - | - |
| Connectors | Touch-proof, Canon25, SpO2, AirFlow | Touch-proof, SpO2, AirFlow | Touch-proof, Canon25, AirFlow | Touch-proof, SpO2, AirFlow |
* Due to a Direct Power mode or battery design, which allows battery swapping during use for uninterrupted long-term recordings.
Interested in the SomniPro PSG?
Get in touch with SAS Medical Systems for detailed layouts, demonstrations, and pricing quotes tailored to your center.
