DuoMAG XT / XTR
rTMS / SYSTEM
Powerful biphasic TMS for clinical and research use.
Key Highlights
- Powerful biphasic TMS for clinical and research use
- Counter-balanced coil holder for weightless coil positioning
- Efficiently cooled coil that lasts all day
- Touch-screen interface with integrated MEP study
System Overview
The DuoMAG XT is a powerful and versatile biphasic magnetic stimulator designed for ease of use in both research and clinical settings. The NEW DuoMAG system, called XTR, represents the high-end model in the DEYMED biphasic stimulator lineup, capable of delivering theta-burst protocol at 100% of stimulator output with any DEYMED coil. The system can be controlled via the coils, a PC, or the DuoMAG touch-screen interface, offering ultimate convenience. A key advantage of the DuoMAG family is its seamless integration with other DEYMED systems, such as TruScan EEG and TruTrace EMG, offering unmatched flexibility. Additionally, the DuoMAG system can be integrated with the MEP study feature for enhanced ease of use. This versatile design allows the system to be easily expanded and customized with additional options, making the DuoMAG unrivaled in its capabilities. It is available in multiple configurations, including Compact and Cart configurations, as well as the innovative MagTower—the first counterweighted arm holder for TMS, which significantly reduces the effort required to hold and position heavy magnetic coils.
DuoMAG XT / XTR Butterfly CoilDEYMED Technological Advantages
Powerful System
Capable of handling intensive high-frequency protocols for the most complex clinical and research applications. DuoMAG XT-100 can reach 100 pps at 45% intensity, and DuoMAG XTR can deliver theta-burst protocol at 100% intensity.
Counter-balanced Coil Holder
The MagTower cart features an innovative counterweight-balanced positioning arm, significantly reducing the effort required to find and secure the placement of DEYMED coils.
Cooled Coil
When used with cooled coils, even intensive TBS protocols can be performed all day without overheating the coil, thanks to a liquid-based system and advanced coil design.
Multi-system Integration
Integration with DEYMED’s TruTrace EMG and TruScan EEG systems enables advanced clinical and research studies. The greatest advantage is that these systems can fully control the stimulator directly from their interface, making examinations significantly easier.
Touchscreen Interface
Combined with intuitive software, it assures ease of use. Touchscreen interface built on Windows, allowing tight integration of Brain navigation by third parties.
Custom Protocol Editor
Create, save, and execute any rTMS protocol with customizable stimulation intensity. Fully adaptable to your research or clinical needs.
System Features
- MagTower with innovative counterweight-balanced positioning arm and auto-locking of position that greatly reduces the effort needed to find and fix the placement of DEYMED coils
- Create and save any rTMS protocol with fully adjustable stimulation intensity
- Integration of DEYMED’s TruTrace EMG or TruScan EEG systems
- Touch-screen interface built on Windows, allowing tight integration of brain navigation by third parties
- Stimulation delivery and intensity settings on the coil for fast and easy access
- When used with the coil cooling system, even intense TBS protocols can be used all day without overheating the coil
- DuoMAG rTMS software with MEP study integration for ease of use
Compatible Coils
70HF-LQC
TBS protocols.
60BF-LQC
Focused cortical stimulation, mainly for rTMS.

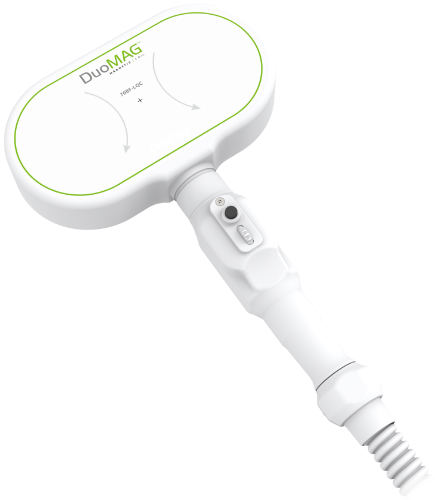

70BF-LQC
Focused cortical stimulation, mainly for rTMS.
70BFP-LQC Placebo
For blinded studies. Intended for research purposes only.
70BFX-LQC
Focused long-term cortical stimulation, mainly for rTMS. More comfort for the patient.
70BFXP-LQC Placebo
For blinded studies. Intended for research purposes only.
90BFVT-LQC
Deep stimulation.

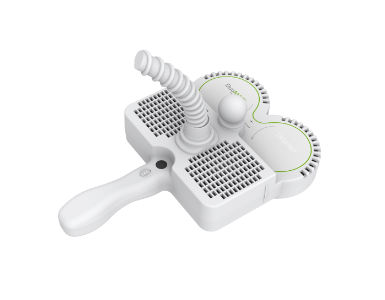

70BF-Cool
Focused long-term cortical stimulation, mainly for rTMS.
70BFP-Cool Placebo
For blinded studies. Intended for research purposes only.
70BF
Focused cortical stimulation, mainly for rTMS.
70BFP Placebo
For blinded studies. Intended for research purposes only.
50BF
Very focused cortical stimulation, mainly for rTMS. Paired-pulse stimulation with twin coil configuration due to smaller size.
120BFVT
Deep cortical stimulation.
50BF T-shaped
Very focused cortical stimulation, mainly for rTMS. Paired-pulse stimulation with twin coil configuration due to smaller size.
30BFT-shaped
Precisely focused stimulation.
100R
Stimulation of peripheral nerves or cortical stimulation.
125R
Spinal stimulation.
Software

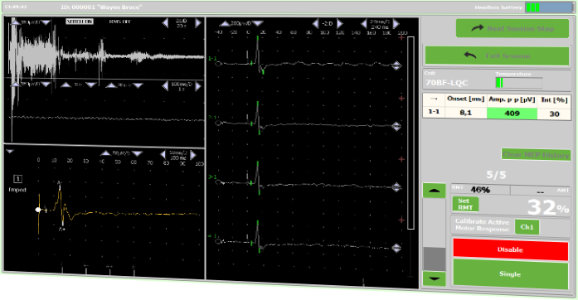

DuoMAG rTMS Software
The DuoMAG rTMS Software features a simple user interface...

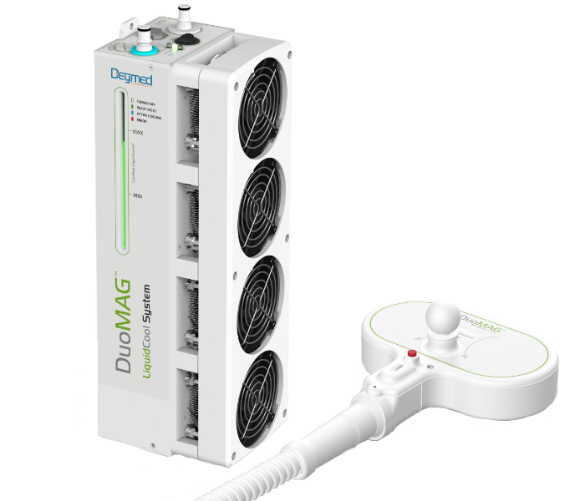

New DuoMAG Coil Cooling System
A unique liquid-based coil cooling system ensures continuous stimulation...

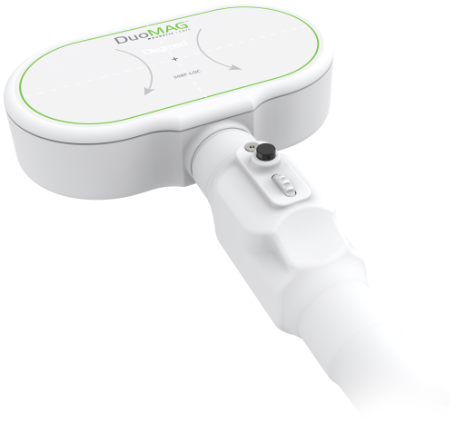

User-friendly Coil Controls
DEYMED coils have built-in controls for stimulation and intensity settings...
Product Details
Liquid cooling system module
Liquid Cooling system for demanding high-frequency repetitive stimulation protocols.
- Non-spill connection couplers
- Monitored temperature & flow rates
Configurations

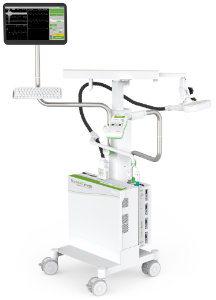

MagTower
The MagTower is an innovative, counterweighted coil holder designed for TMS, significantly reducing the effort required to handle and position the coils. This makes it ideal for scenarios where ease of use is essential. Locking the coil in place is as simple as pressing a button. The MagTower contains a touch-screen interface and can also be equipped with a coil cooling system and an EMG headbox arm.
MagCart
The MagCart configuration is compact and highly mobile, ensuring easy manoeuvrability. An optional articulating arm allows the coils to be quickly secured after positioning. If the coils are liquid-cooled, the cooling unit can be conveniently placed on the cart as well. The system can also be configured with a preinstalled laptop or touch-screen interface, coil arm, and EMG headbox.
Compact
The DuoMAG XT can be placed on a desktop or elsewhere in a compact space. Not compatible with coil cooling system.
Accessories
We supply a range of accessories for our systems. Download the DEYMED Accessories catalogue in PDF format.
Hardware Add-ons
TruTrace EMG 2ch Headbox
TMS compatible TruTrace EMG 2ch Headbox, includes two 5-pin DIN connectors (with pins for patient ground and shielding) or individual active and reference 1.5 mm touch-proof connectors and a temperature probe connector.
TruTrace EMG 4ch Headbox
TMS compatible TruTrace EMG 4ch Headbox, includes four 5-pin DIN connectors (with pins for patient ground and shielding) or individual active and reference 1.5 mm touch-proof connectors and a temperature probe connector.
Coil Liquid Cooling System
Advanced liquid coil cooling system ensures efficient performance with minimal noise.
Coil Arm Holder
Integration of a coil arm holder for the MagCart.
Laptop Shelf
Shelf mounted on top of the stimulator for laptop placement.
TMS Pedal Footswitch
Programmable pedal footswitch.
TMS Chair
Electrically adjustable chair. Optionally side support for headrest.
Technical Specification
| Product Specification | XT-10 | XT-35 | XT-100 | XTR |
|---|---|---|---|---|
| Pulse Shape | Biphasic | Biphasic | Biphasic | Biphasic |
| Pulse Mode | Single, Repetitive | Single, Repetitive, Burst | Single, Repetitive, Burst | Single, Repetitive, Burst |
| Maximum Repetition Rate | 30 pps | 60 pps | 100 pps | 100 pps |
| Coil Compatibility | DEYMED Coils | DEYMED Coils | DEYMED Coils | DEYMED Coils |
| Main Voltage | 100-240Vac 50/60 Hz | 100-240Vac 50/60 Hz | 100-240Vac 50/60 Hz | 100-240Vac 50/60 Hz |
| Synchronization | TTL In/Out and/or USB | TTL In/Out and/or USB | TTL In/Out and/or USB | TTL In/Out and/or USB |
| Communication | USB Full Control, Control on Coil | USB Full Control, Control on Coil | USB Full Control, Control on Coil | USB Full Control, Control on Coil |
| Intended | Clinical, Research | Clinical, Research | Clinical, Research | Clinical, Research |
⚠️ Regulatory Notice
Please note that this product may not be approved by regulatory authorities in your country/region. For more information, please consult with us or our distributor. *For users in the USA: Product is considered an investigational device. Limited by Federal (or United States) Law only to investigational use.Interested in the DuoMAG XT / XTR?
Get in touch with SAS Medical Systems for detailed layouts, demonstrations, and pricing quotes tailored to your center.
